WW2 blackout rules for vehicle lights in WW2 UK
The blackout regulations for vehicles in World War Two were necessary to prevent enemy aircraft seeing lights that would suggest a populated area or factory for bombing. This page lists the requirements for dimming the lights on bicycles and motor vehicles like cars, and it describes and illustrates how they worked in practice.
____
By the webmaster, based childhood observations and additional research
How bicycle lights were dimmed and masked in the blackout
At the end of this section is a poster on blackout regulations for bicycles. Here are its main points:
- Regulation white patch on mudguard.
- Good tyres and brakes.
- The rear lamp must have only one aperture - no bigger than a one-inch circle, the light from which must be clearly visible from 30 yards but not visible at 300 yards.
- The upper half of the front lamp glass and whole of side or rear panels must be completely obscured and lower half of reflector must be painted with black matt paint of otherwise rendered ineffective.
As a young child, I knew nothing of these regulations and was seldom out after dark. Nevertheless, I do remember seeing the white patches on the backs of mudguards of bicycles. I assumed, at the time, that it was simply fashion.

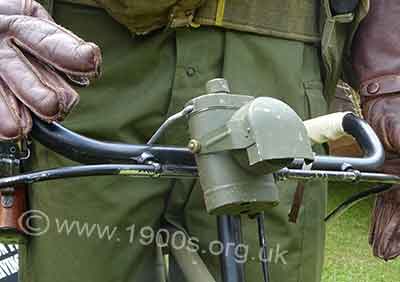

Dipped front bicycle light for blackout regulations, as instructed in the above poster. Note its 'camouflage' colour.
The poster on obeying blackout regulations for a bicycle. It enlarges to a legible size on tap/click. The logo on the lower right is of the Cyclists' Touring Club.
How car lights were dimmed and masked in the blackout
For cars and presumably for other vehicles - there was the requirement of good tyres and brakes, a clean windscreen and for doors to be locked for parking with the ignition key removed. Cars were not be left outside overnight.
The rules specifically for the blackout were stringent:
Poster showing blackout rules for bicycles.
- Use only one headlamp fitted with a slit mask.
- Dimmed side lamp.
- Fog lamp for use in fog only.
- No inside light.
- Dimmed indicator lights.
- Reversing lamp prohibited.
- Reduced rear lights and stop lights.
- In order to be seen more easily from the ground but not from above, the back bumpers and running board to be painted with white matt paint.
Two types of masks for vehicle headlamps - slits and shades. Screenshots from wartime films.
| sources | webmaster | contact |
Text and images are copyright
If you can add anything to this page or provide a photo, please contact me.
